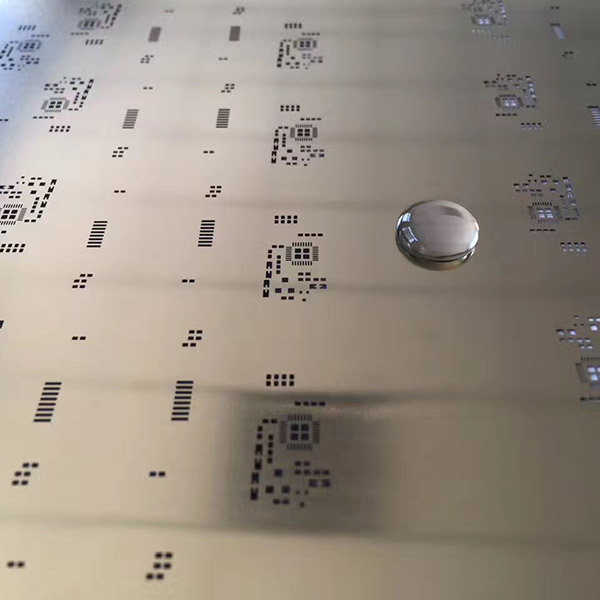

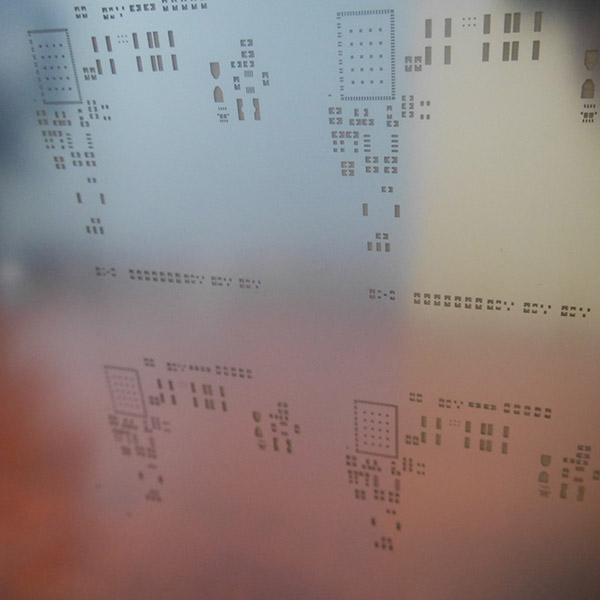

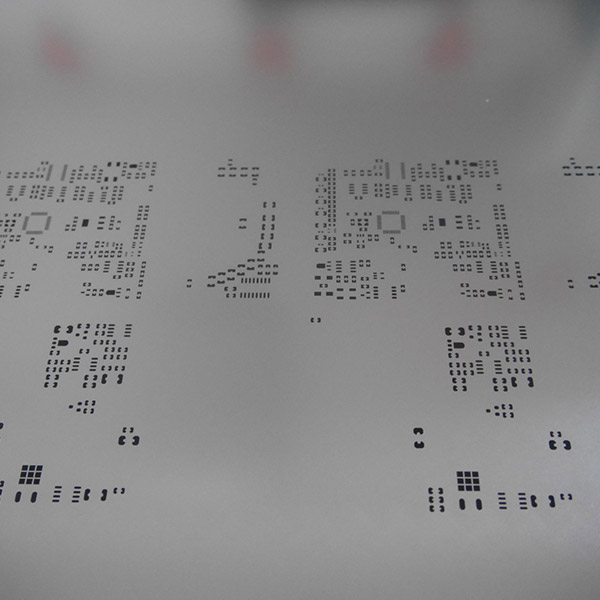

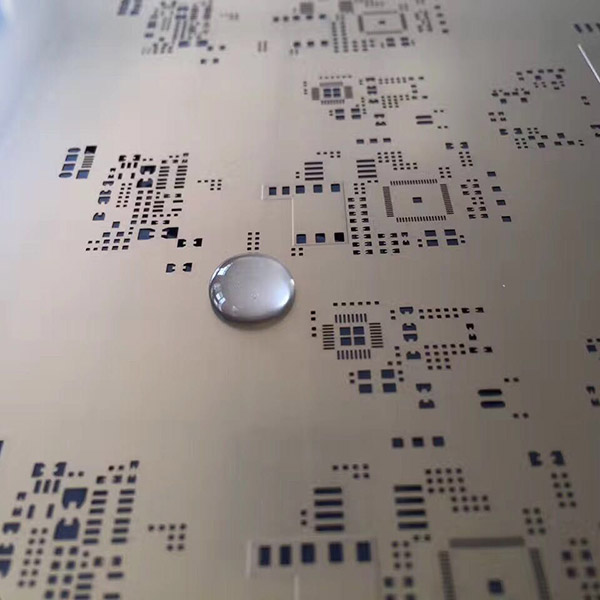

Frameless Stencil

Frameless PCB stencils are designed to work with stencil tensioning systems and are optimum for short runs, prototyping and hand printing on Printed Circuit Boards (PCBs). The PCB stencil’s smooth aperture walls work well for ultra fine pitches, micro BGAs, and small bottom-terminated components. Frameless PCB stencils mount directly into a frame system without the need for glue or mesh.

Description

Frameless PCB stencils are designed to work with stencil tensioning systems and are optimum for short runs, prototyping and hand printing on Printed Circuit Boards (PCBs). The PCB stencil’s smooth aperture walls work well for ultra fine pitches, micro BGAs, and small bottom-terminated components. Frameless PCB stencils mount directly into a frame system without the need for glue or mesh.

Advantage

· Apply continuous, uniform tension in all directions

· Requires less storage space

· Eliminates materials waste

· Cost-effective and environmentally safe alternative to framed PCB stencils

· Optimum solder paste placement and volume control

Specifications

Stencil SideMaterialFoil Thickness (in inches)Frame Type
Top Side
Bottom Side
Top&Bottom(on single stencil)
Top&Bottom(on separate stencil)
Stainless Steel0.003
0.004
0.005
0.006
0.007
0.008
0.009
0.010
0.011
0.012
 QTS
Zelflex
Stencil Length (in inches)Stencil AlignmentStencil Width (in inches)Maximum Size
Center
Offset
1-1012 ʺ x 10 ʺ
FiducialsTechnologyMinimum Cut WidthRepeatability
Half etch
Cut through
100% Laser Cut
Electropolishing
0.002ʺ±16 µm
Positional AccuracyAperture Dimensional Tolerance
±12.5 µm±9 µm
